EvoLogics underwater acoustic modems provide full-duplex digital communication using the patented S2C (Sweep-Spread Carrier) technology, delivering an excellent performance, resistant to the challenges of a dynamic subsea environment.



Self-adaptive algorithms adjust the S2C parameters to maintain the highest bit rate possible in current conditions.

The spread-spectrum S2C communication technology stems from bionic concepts and over the years evolved into an entire ecosystem of products.

EvoLogics modems implement advanced data delivery algorithms, support several data management options, are capable of addressing and networking and are easy to control with a comprehensive set of commands and software-configurable settings.

R-Series

S2C R “standard” build modems are highly configurable. The series features a large selection of short- mid- and long-range devices for shallow or deep water applications.

S2C R modems offer the widest selection of options and depth ratings to find an exact match to most unique and application-specific tasks

Mini-Series

S2C M-series offers the full benefits of the S2C technology in a light and compact design, targeting size- and weight-sensitive applications.

The series features several popular transducers in high- and mid-frequency range, as well as a unique high-frequency transducer for fast short-distance transmissions.

Tiny-Series

The newest light and ultra-compact design represents a size reduction of almost 20% compared to mini-modems.

The S2C T series form factor is available for high frequency models, catering to various applications with 4 frequency range/directivity options.


HIGH SPEED MID-RANGE DEVICES

Underwater Acoustic Modems

18/34
Fast devices for mid-range horizontal transmissions.
All-round performer

Frequency: 18 - 34 kHz

Acoustic Connection: up to 13.9 kbit/s



Operating Range: 3500 m



Directivity: several versions available

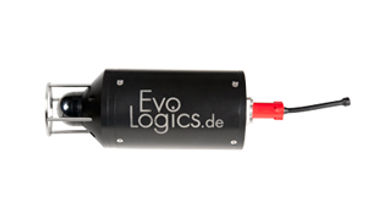

42/65
High-speed devices for
mid-range vertical and slant transmissions

Frequency: 42 - 65 kHz



Acoustic Connection: up to 31.2 kbit/s



Operating Range: 1000 m



Directivity: wide-angle (100 degrees)

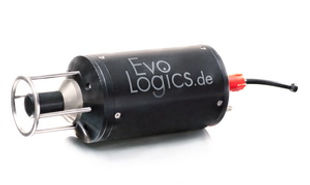

48/78
High-speed devices for
mid-range horizontal transmissions

Frequency: 48 - 78 kHz

Acoustic Connection: up to 31.2 kbit/s



Operating Range: 1000 m



Directivity: horizontally omnidirectional

HS
High-speed devices for
short range transmissions in shallow water

Frequency: 120-200 kHz

Acoustic Connection: up to 62.5 kbit/s



Operating Range: 300 m

Directivity: omnidirectional

15/27
Fast devices for mid-range horizontal transmissions. All-round performer

Frequency: 18 - 34 kHz



Acoustic Connection: up to 13.9 kbit/s



Operating Range: 3500 m



Directivity: several versions available

12/24
High-speed devices for mid-range vertical and slant transmissions



Frequency: 42 - 65 kHz



Acoustic Connection: up to 31.2 kbit/s



Operating Range: 1000 m



Directivity: wide-angle (100 degrees)

12/24
High-speed devices for mid-range vertical and slant transmissions



Frequency: 42 - 65 kHz



Acoustic Connection: up to 31.2 kbit/s



Operating Range: 1000 m



Directivity: wide-angle (100 degrees)

15/27
Depth-rated devices for long-range vertical or slant transfers



Frequency: 15 - 27 kHz

Acoustic Connection: up to 9.2 kbit/s


Operating Range: 6000 m


Directivity: wide-angle (120 degrees)

12/24
Depth-rated devices for long-range vertical or slant transfers

Frequency: 13 - 24 kHz

Acoustic Connection: up to 9.2 kbit/s

Operating Range: 6000 m

Directivity: conical (70 degrees)

7/17
Depth-rated devices for long-range horizontal, vertical or slant transfers

Frequency: 7 - 17 kHz

Acoustic Connection: up to 6.9 kbit/s


Operating Range: 8000 m


Directivity: Several available


DEPTH RATED LONG-RANGE DEVICES
MODEM OPTIONS AND ACCESSORIES

OEM Version
For vehicle/platform integration

All EvoLogics S2C Underwater Acoustic Modems and Positioning Systems are available in OEM configuration without housing, ideal in cases where minimal size and weight are critical.

OEM devices feature standard S2C electronics and a cable-mounted transducer, carefully matched to the analog front end unit for best performance.



These systems are ideal for integration into your own products and equipment, such as:

  • AUVs and ROVs

  • Integrated sensors

  • Surface buoys



OEM devices can be configured with most of options and modules available with standard S2C devices.

Beacons
Modems w/integrated float collars

Any S2C R underwater acoustic modem can be configured as an S2C beacon - a compact battery-powered device with built-in acoustic release mechanism and floatation collar.

With EvoLogics' patented S2C technology, the beacon is a great communication and positioning performer, optimized for short- and mid- term deployment and easy recovery back to the surface.


As a transponder for LBL or USBL positioning, an underwater communication network or relay chain node, the S2C beacon can benefit applications including:

  • Transponder for LBL and USBL positioning

  • Autonomous relay station

  • Autonomous underwater network node

Mounting Frames
For mounting and protecting SC2 devices

For proper mounting of S2C devices and protect them when operating in harsh environments.

EvoLogics S2C mounting frames protect internal electronic components against mechanical damage due to shocks, strong vibration, abrasions, etc.

Standard mounting frames are compatible with: all S2CR modems

and many USBL modems.  Custom designs also available, please contact us for more information.

release attached to modem 2.png
S2C Acoustic Release
For deploying and recovering underwater assets

Compatible with selected EvoLogics S2C devices, the Acoustic Release module uses acoustic signals to trigger the Acoustic Release to drop the attached weight, deploy sensors at desired location, operate a mechanism, or recover underwater equipment.

After receiving a special acoustic trigger from a remote S2C device, the module opens the lock and releases the shackle or frame
with the asset attached. Based on a hydraulic system, the powerful opening mechanism offers great durability with its reliable construction.



  • Individually addressable

  • Light, compact and efficient pressure neutral mechanism

  • Durable construction suitable for long-term and short-term deployments.
